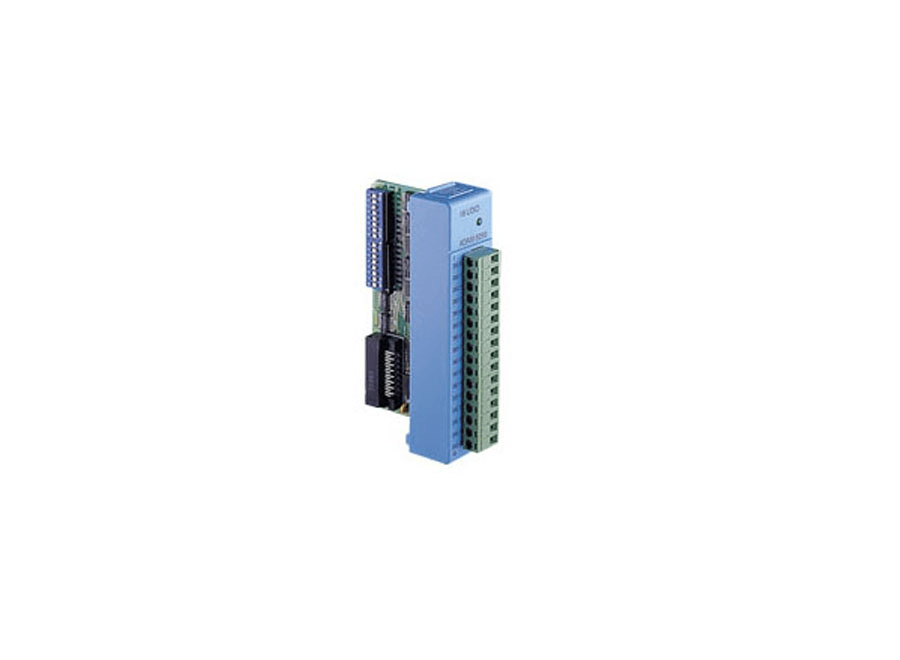

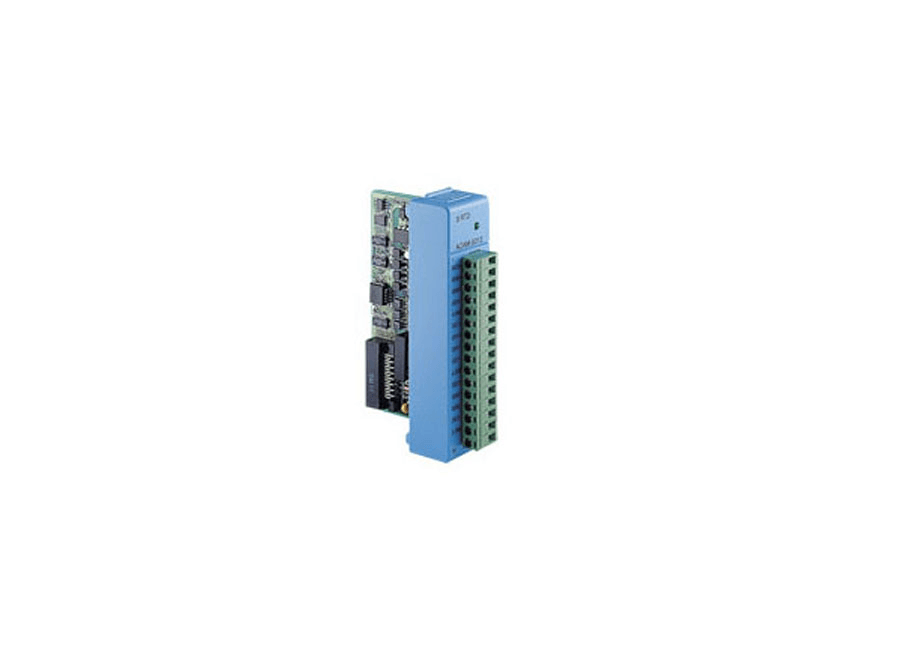

Modular I/O System: Adam-5000 SeriesADAM-5050
16-ch Universal Digital I/O Module
- Digital input: Support Dry/Wet Contact
- Digital output: Open Collector to 30 V, 450 mW max. load
- I/O Type: bit-wise selectable by DIP switch
- Power consumption: 0.35 W (typical); 1.2 W (max)
- Channels: 16
- DAQ Type: REMOTE I/O
- DI: Yes
- DO: Yes
- AI: No
- AO: No
