Isolated/Relay Digital I/O Terminal Data Acquisition (DAQ) | Lubi Electronics

Get the Isolated/Relay Digital I/O Terminal Brochure in One Click

Download the Isolated/Relay Digital I/O Terminal brochure for specifications, wiring diagrams, and key technical details.

Products\Catalogue\SPG.PDF

Home
Data Acquisition (DAQ)
Isolated/Relay Digital I/O Terminal

Isolated/Relay Digital I/O Terminal for High-Efficiency Control

Isolated Digital I/O terminals boards and I/O wiring board offer isolated input channels which makes it ideal for industrial applications. The I/O terminals are also high-voltage protection.

Isolated/Relay Digital I/O Terminal Models Available

Search by Part No.

Filters

Type

Signal Conditioning Module

DI

Yes

DO

No

AI

No

AO

No

Isolated/Relay Digital I/O Terminal SeriesPCLD-782B

24-ch Opto-Isolated Digital Input Board

Compatible with all PC-LabCard™ products with DI channels on either 20-pin flat cable or 50-pin Opto-22 compatible connectors
24 optically-isolated digital input channels
Built-in screw terminals for easy input wiring
LEDs indicate input logic status
Inputs buffered with voltage comparators

Type: Signal Conditioning Module
DI: Yes
DO: No
AI: No
AO: No

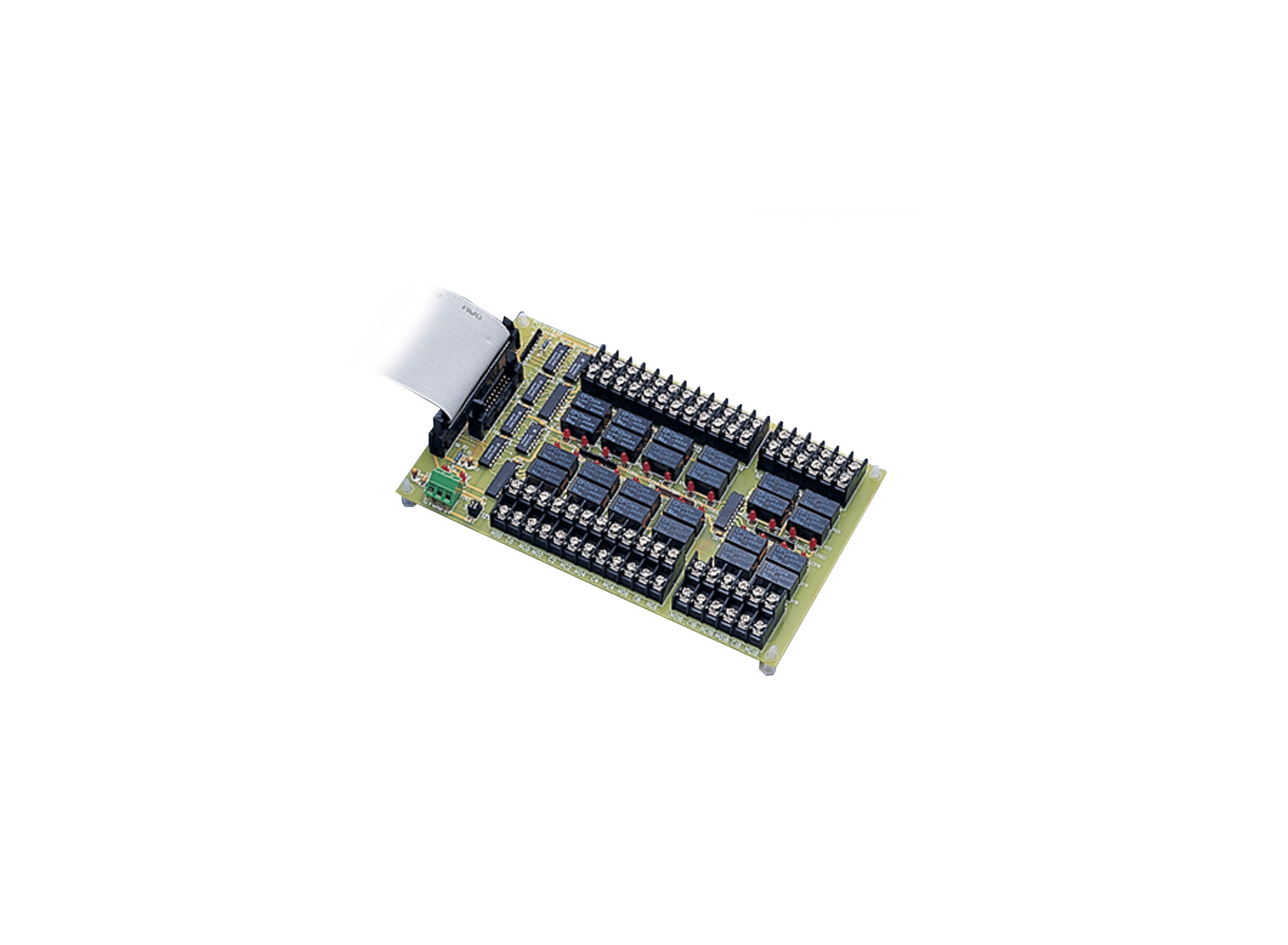

Isolated/Relay Digital I/O Terminal SeriesPCLD-785

16-ch Relay Board

Automatic selection of control logic (PLCD-785B only)
Negative logic for the Opto-22 connector
Positive logic for the 20-pin flat cable connector
Screw terminals for easy output wiring
LED status indicators

Type: Signal Conditioning Module
DI: Yes
DO: No
AI: No
AO: No

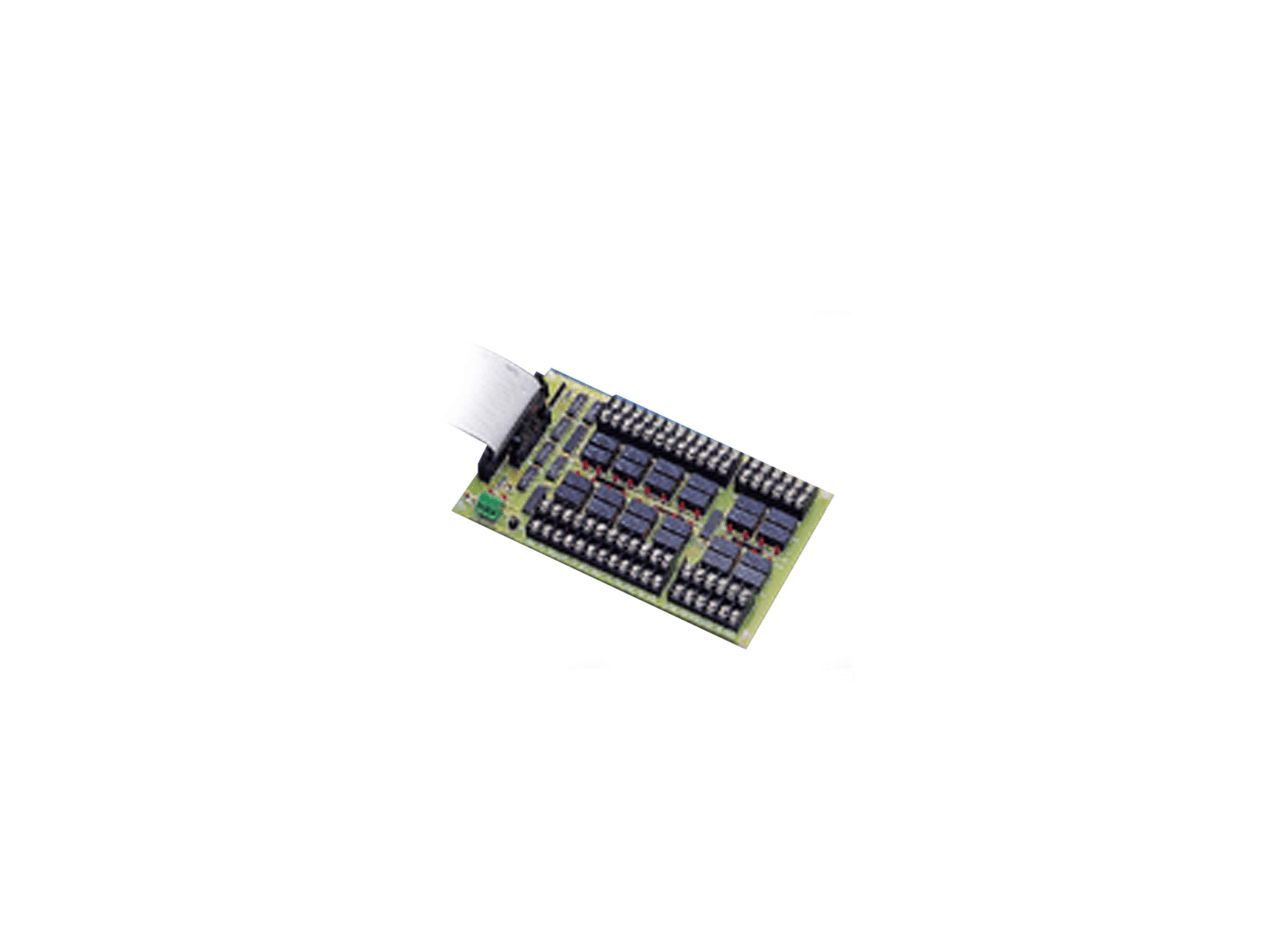

Isolated/Relay Digital I/O Terminal SeriesPCLD-785B

24-ch Relay Board

Compatible with PC-LabCard™ products
20-pin digital output connector
50-pin Opto-22 digital output connector
Screw terminals for easy output wiring
LED status indicators

Type: Signal Conditioning Module
DI: Yes
DO: No
AI: No
AO: No

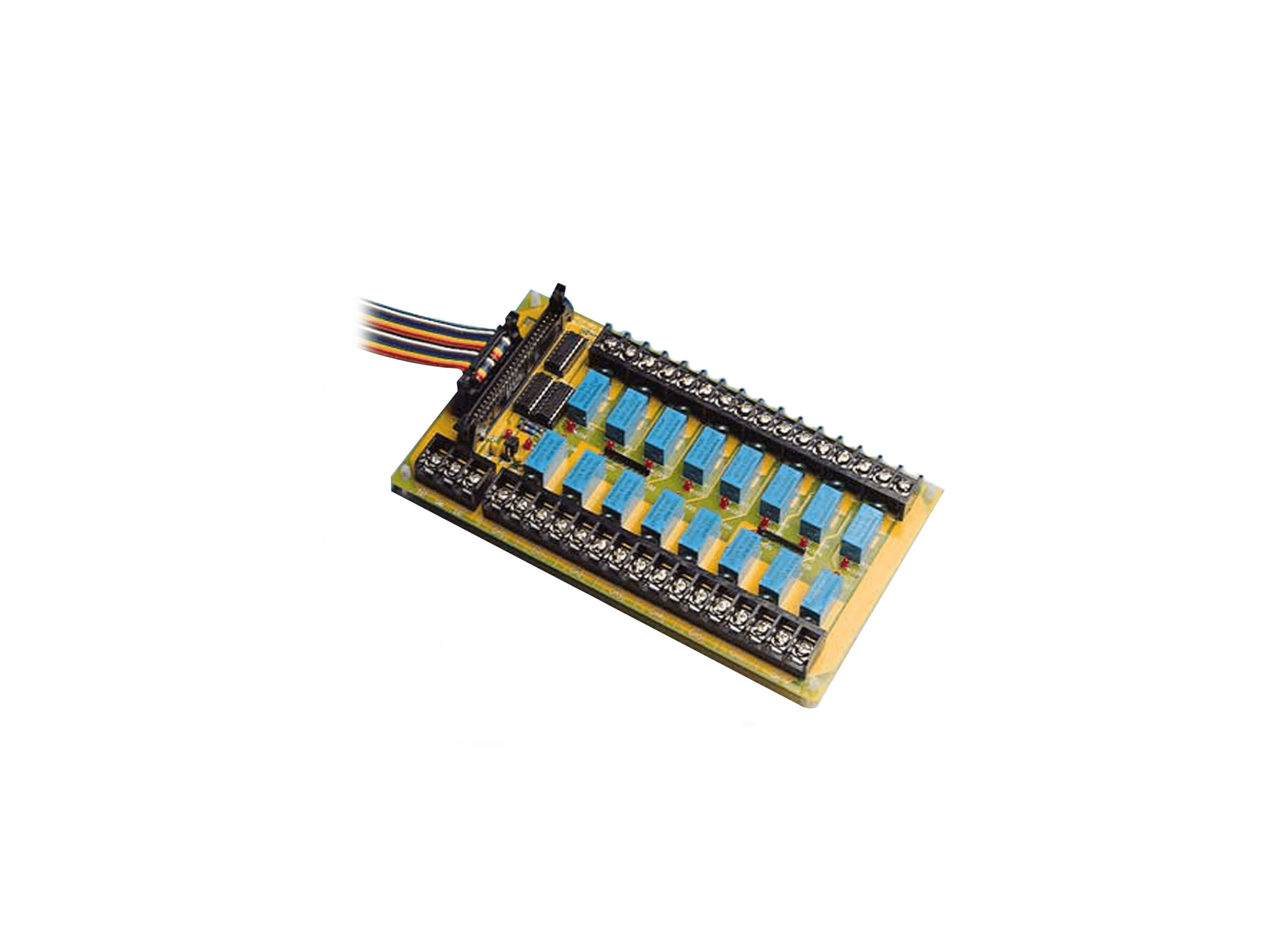

Isolated/Relay Digital I/O Terminal SeriesPCLD-885

16-ch Power Relay Board

Accepts 20-pin or 50-pin (Opto-22 compatible) connectors
16 single-pole single-throw (SPST) relays
High-power relay handles up to 5 A @ 250 VAC
Onboard varistors protect all relay contact points
Industrial screw terminals for ease of wiring
LED status indicators
+5 V/+12 V power/status LED indicator

Type: Signal Conditioning Module
DI: Yes
DO: No
AI: No
AO: No

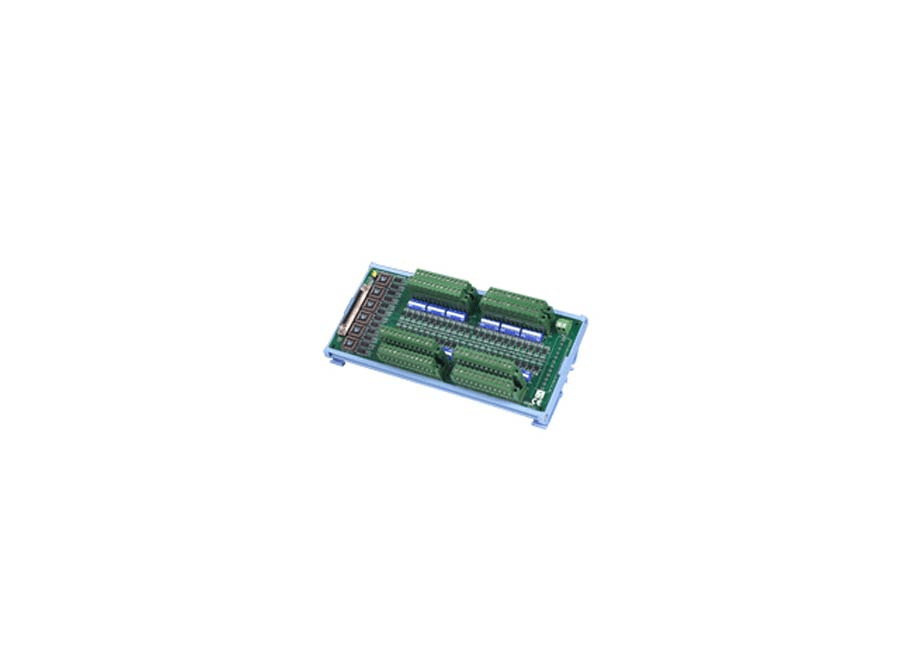

Isolated/Relay Digital I/O Terminal SeriesPCLD-8751

48-channel Opto-isolated D/I Board

48 optically-isolated digital input channels
Built-in plug-in screw terminals for easier wiring
LEDs indicate input logic status
Input buffered with voltage comparators
Wet/Dry contact set by DIP switches

Type: Signal Conditioning Module
DI: Yes
DO: No
AI: No
AO: No

Isolated/Relay Digital I/O Terminal SeriesPCLD-8761

24 Relay and 24-ch Isolated D/I Boards

Built-in plug-in screw terminals for easier wiring
LED status indicators for D/I and relay output
Digital inputs buffered with voltage comparators
Wet/Dry contact set by DIP switches for D/I
Wide input range from 5 to 30 V
INT/EXT Power selection by jumper

Type: Signal Conditioning Module
DI: Yes
DO: No
AI: No
AO: No

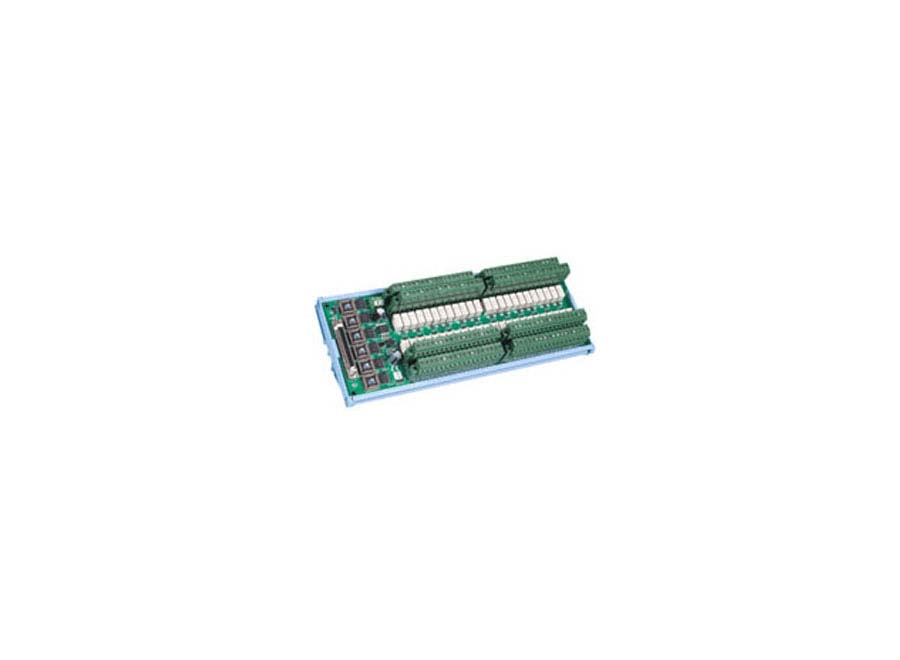

Isolated/Relay Digital I/O Terminal SeriesPCLD-8762

48-ch Relay Board

Built-in plug-in screw terminals for easier wiring
LED status indicators for Relay output

Type: Signal Conditioning Module
DI: Yes
DO: No
AI: No
AO: No

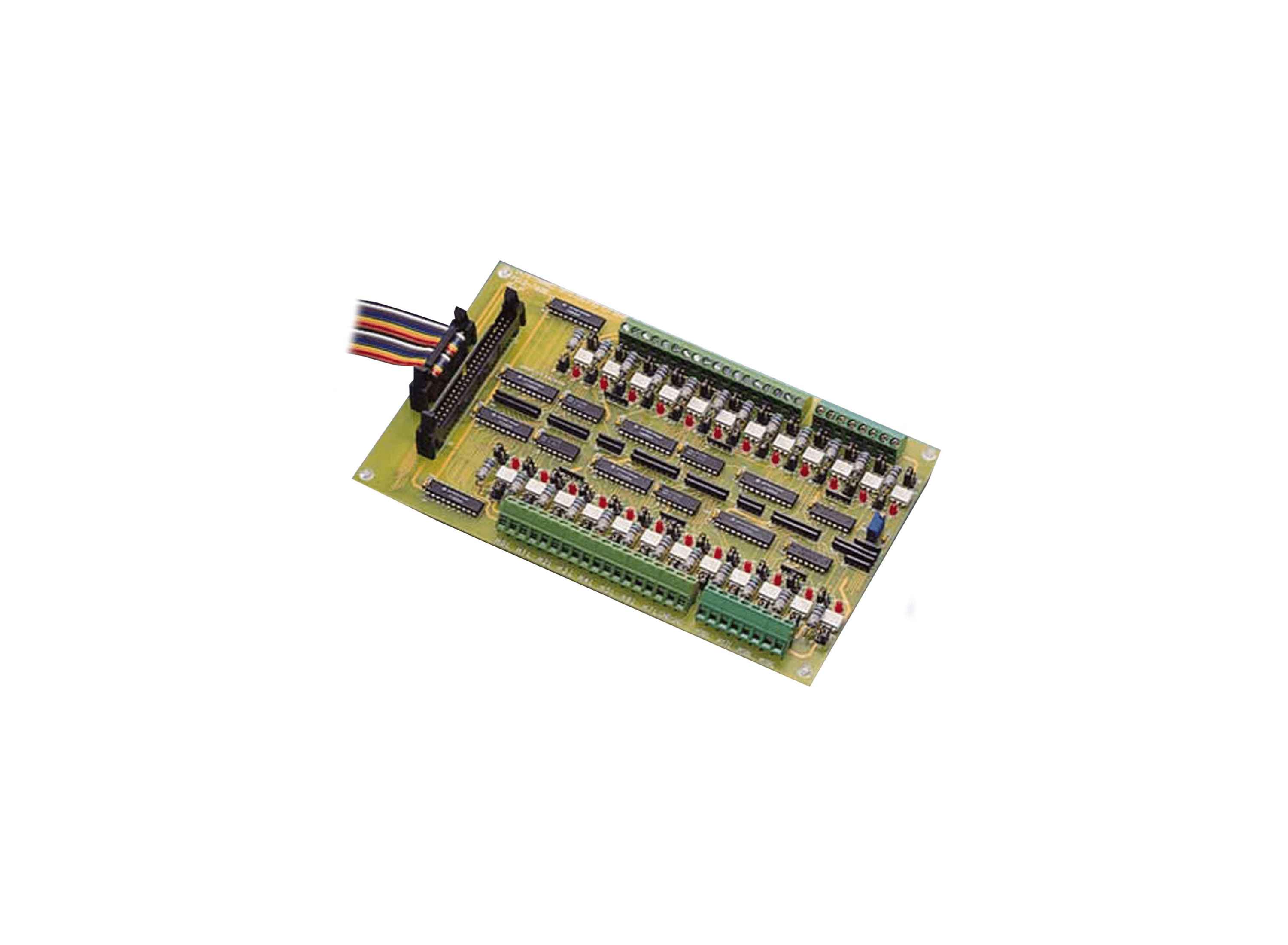

Isolated/Relay Digital I/O Terminal SeriesPCLD-782

16-ch Opto-Isolated Digital Input Board

Compatible with all PC-LabCard products with DI channels. See specifications for details.
16 or 24 optically-isolated digital input channels
Built-in screw terminals for easy input wiring
LEDs indicate input logic status
Inputs buffered with voltage comparators

Type: Signal Conditioning Module
DI: Yes
DO: No
AI: No
AO: No

Rows Per Page:

Pageof 1
