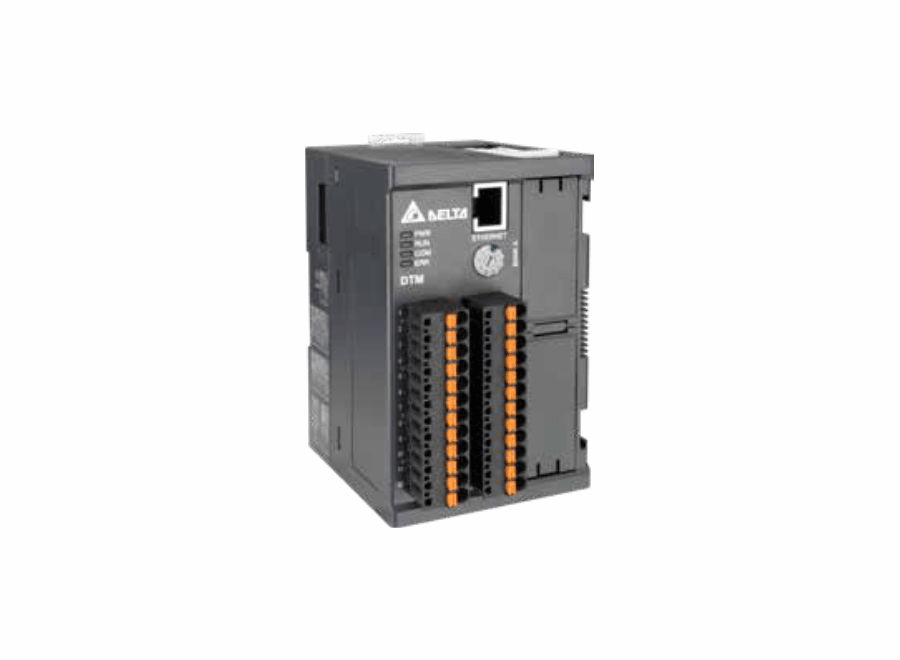

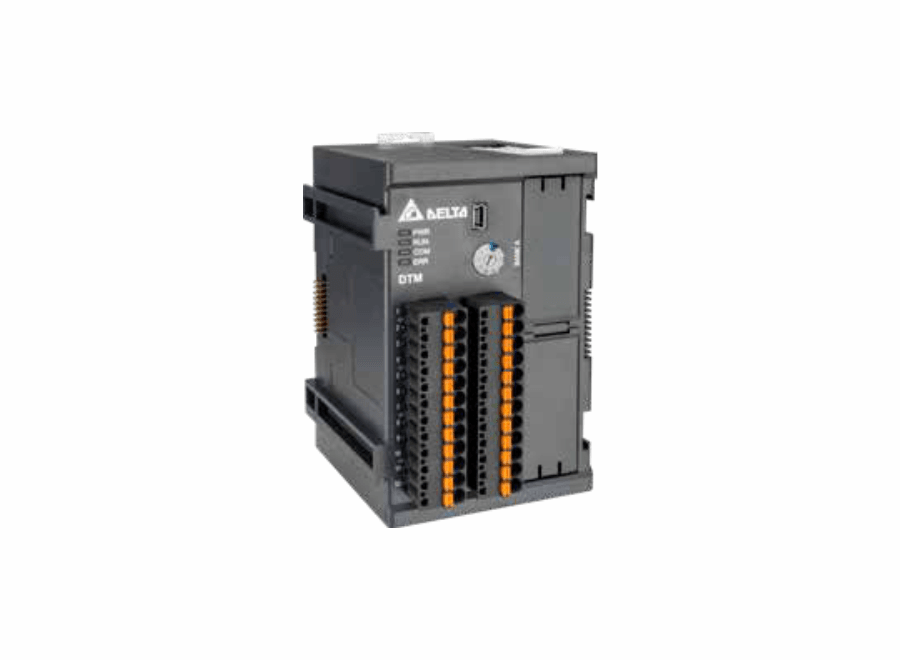

DTM Series for High-Efficiency Control

DTM series is a Multi-channel Modular Temperature Controller which is designed to meet the complexity of temperature control applications. The DTM Series is a combination of a host, measurement modules, I/O extension modules, and extension cards. DTM supports host plus 7 measurement modules and 8 I/O extension modules suitable to control up to 64 points of temperature control. We can connect several DTM groups with PLC or SCADA or HMI via RS-485 or Ethernet for temperature control of up to 1,000 points or more. There is a complete isolation between channels which help to improve communication speed and stability. It is suitable for advanced and complex type temperature control applications.
